In today’s broadcast and professional AV environments, delivering high-quality video to multiple displays across complex infrastructures is a key challenge. Much of the backbone for large-scale video distribution—especially in hotels, campuses, stadiums, and multi-room systems—often utilizes coaxial cable networks built initially for cable television (CATV).

A central component in enabling this distribution is the CATV SDI modulator: a device that takes a video source (commonly SDI – Serial Digital Interface) and converts it into an RF (radio-frequency) signal or a QAM/ATSC/DVB output compatible with CATV infrastructure.

By mastering the functions of these modulators, their operation, use cases, and selection criteria, integrators and broadcast engineers can design efficient, future-proof video systems that meet their specific needs. This article will unpack:

What is SDI (Serial Digital Interface)?

To understand SDI modulators, we must start with the video interface: SDI.

SDI Basics

The term SDI stands for Serial Digital Interface. It is a digital video standard typically used in broadcast and professional video environments. Uncompressed (or lightly compressed) digital video signals, along with embedded audio and metadata, are carried over coaxial cables (often using BNC connectors) in an SDI system.

Key SDI variants include:

• SD-SDI: Standard-Definition SDI (e.g., 480i, 576i)
• HD-SDI: High-Definition SDI (e.g., 720p, 1080i, 1080p)
• 3G-SDI: A higher-bandwidth version supporting full 1080p at higher frame rates (and multiple streams) up to ~2.97 Gbps.
• 6G / 12G SDI: For UHD and 4K workflows (12G SDI supports 4K60 over a single cable).

To dive deeper into this, check out HD-SDI to RF Modulator 2025: The Ultimate Video Solution, which explains how SDI interfaces connect seamlessly with RF systems.

Why is SDI used

SDI has long been the standard in broadcast because of its advantages:

• Reliable transmission of high-quality, low-latency video.
• Strong clocking and synchronization capabilities for live broadcast.
• Professional connector standard (BNC) and good immunity to interference (compared to HDMI over long cable runs).
• Support for embedded audio, timecode, and ancillary data — valuable in professional workflows.

SDI Limitations in Distribution

While SDI is excellent for short to moderate cable runs, it’s not ideal for multi-endpoint video delivery. That’s Why SDI-to-RF Converters Still Matter highlights how SDI-to-RF modulators fill this gap in modern systems. Limitations include:

• SDI cable length increases rapidly with higher bandwidth (e.g., 12G SDI can only reliably extend tens of metres on copper).
• Splitters, taps, and amplifiers designed for CATV may not handle high-speed SDI signals well.
• Many end-display devices require an RF/QAM input, rather than an SDI input (especially legacy TVs or cable-tuned sets).
• Thus, the need arises for a device that converts SDI into a format compatible with CATV distribution: enter the SDI modulator.

What is a CATV SDI Modulator

A CATV SDI modulator (sometimes called an SDI-to-RF modulator or SDI-to-QAM modulator) is a device that receives an SDI input (from a camera, switcher, media server, or playback device) and converts it into an RF output (often QAM, ATSC, DVB-T/C) suitable for distribution over coaxial cable to multiple TVs or tuners.

To learn how these work at 4K quality, read SDI 4K Modulator – Unlock True 4K Brilliance

Key Functions

Specifically, a CATV SDI modulator typically performs the following functions:

1. Input reception: It accepts an SDI signal (HD-SDI, 3G-SDI, sometimes dual SDI inputs) from the video source.
2. Encoding/compression: It may encode or transcode the video/audio into a suitable format (e.g., MPEG-2, H.264/H.265) to optimise bandwidth.
3. Modulation: The encoded signal is modulated into an RF carrier channel or QAM/COFDM channel at a specific frequency within the CATV network.
4. Distribution output: The modulated RF signal is then fed into the existing coaxial cable infrastructure (e.g., TV network in a hotel, campus, stadium) so that multiple end-devices (TVs, set-top boxes) can tune to it as a channel.
5. Management/Configuration: Many modulators offer web interfaces, SNMP support, remote control, channel mapping, and firmware updates.

To enhance signal reliability, consider Fix Weak Signals Fast with SDI RF Modulators for practical solutions.

Why Use CATV SDI Modulator

The benefits of using a CATV SDI modulator include:

• Leverage existing coaxial infrastructure (e.g., CATV network) without rewiring for IP or HDMI.
• Enable multiple TVs/displays to receive the same channel/source across a property, building, or venue.
• Ideal for broadcast venues, hotels, hospitals, stadiums, and educational institutions.
• Allows legacy TVs with tuner capabilities to view modern digital sources.
• Simplifies distribution by presenting the source as a “channel” on the cable network.

For multi-input systems, the 8-Channel SDI Modulator – The Ultimate Power Boost shows how to expand capacity across venues.

Example Use-Case

Imagine a hotel with a digital signage server playing hotel information, CCTV feed, and live TV content. Using a CATV SDI modulator, the hotel can feed these sources into the modulator, assign channel numbers (e.g., Channel 101, 102), and push them via the hotel’s coax TV distribution to every room. Guests tune to the expected channel numbers as they would on cable TV. Meanwhile, the SDI input ensures high quality and professional connectivity upstream.

This is where solutions like the HDTV CATV Modulator – Fix Weak TV Signals shine, maintaining clarity and minimizing downtime.

Technical Standards and Features to Understand

When evaluating and selecting a CATV SDI modulator, it’s essential to understand the key technical standards and features. Let’s break them down.

SDI Input Standards

• HD-SDI (e.g., 1.485 Gbps) – typically 720p, 1080i/p at lower frame rates.
• 3G-SDI (~2.97 Gbps) – supports 1080p60 and dual streams over a single cable.
• 12G-SDI (~11.88 Gbps) – supports 4K60 over a single cable.
• Note: Many modulators may support 3G-SDI or HD-SDI, but 12G may still require specialised gear.

Encoding & Compression

Since CATV/QAM channels have limited RF bandwidth, the CATV SDI modulator often compresses the input:

• Video codecs: MPEG-2, H.264 (AVC), H.265 (HEVC) — depending on model.
• Audio codecs: AAC, MPEG-1 Layer II, Dolby Digital — depending on spec.
• Latency: In a live broadcast, the delay introduced by encoding must be minimal. Some SDI-to-RF modulators claim latency as low as ~70 ms to 110 ms for HD-SDI.

RF / QAM / Modulation Standards

For output distribution over CATV coax, key standards include:

• QAM (Quadrature Amplitude Modulation) – common in North American CATV systems.
• DVB-C/DVB-T (Digital Video Broadcasting – Cable/Terrestrial) – Europe and other regions.
• ATSC – North America broadcast standard.
• ISDB-T – Latin America/Japan.
• A CATV SDI modulator will typically allow you to set the channel frequency (e.g., 50 MHz – 950 MHz) and modulation type.

Coaxial Cable / Distribution Infrastructure

• Existing coaxial networks (designed for cable TV) can carry the modulated signal to multiple endpoints.
• Advantage: minimal rewiring, use of taps/splitters, etc.
• Note: Although SDI cables can theoretically carry SDI signals over long distances, distribution amplifiers and taps for CATV are typically optimized for RF/QAM, rather than high-speed SDI splitting.

Resolution / Quality / Signal Integrity

• The input SDI quality and output RF channel quality depend on several factors, including cable type, distance, splitting/attenuation in the network, and encoding bitrate.
• For high-quality, lossless video, the fewer the transcodings, the better.
• Many modulators support up to 1080p or 4K, depending on the specification.

Management and Control

• Web GUI, SNMP, remote firmware updates—helpful for system integrators.
• Channel-mapping, OSD (on-screen display) overlays, and scheduling may be supported.
• Consider reliability, vendor support, and scalability.

To simplify integration, explore SDI QAM Modulator – Simple and Reliable for details on QAM-based systems.

Use-Cases & Applications

Let’s explore typical environments where CATV SDI modulator shine.

Hotels, Resorts & Hospitality

In a hotel environment:

• Guests expect to tune to familiar channel numbers.
• A headend may aggregate live TV, local media (such as hotel promotions and safety announcements), and CCTV feeds for in-room display.
• A CATV SDI modulator converts a single high-quality source (such as an SDI output from a server) into RF channels that connect directly to the hotel’s coax network.
• Benefits: lower rewiring cost, consistent channel numbering, and the ability to overlay hotel branding.

Stadiums, Arenas & Large Venues

Large venues with multiple displays (bars, suites, concourses) require the distribution of live event feeds, digital signage, and broadcast channels.

• The venue features extensive cable runs and numerous taps/splits.
• SDI sources (e.g., cameras, replay systems) are fed into modulators and distributed as RF channels (e.g., 1001, 1002) throughout the venue.
• Utilizing the existing coaxial infrastructure reduces costs and installation complexity.
• As one article puts it: “HD-SDI to RF has become an invaluable resource in demonstrating ability… at the lowest cost available to design engineers.”

Educational Institutions & Campuses

Schools, universities, and hospitals may want to display lecture feeds, CCTV footage, or signage across multiple TVs.

• A modulator lets a central media server or camera feed become a channel on the campus TV network.
• Central management ensures easy updates, scheduling, and channel mapping.

Cable / CATV Headends & Custom Channel Distribution

Some installations (e.g., boutique cable networks, hospitality cable services) want to insert local content or video sources into a CATV network.

• A CATV SDI modulator enables the conversion of SDI (e.g., from a playback device) into a QAM channel that coexists with regular cable content.
• It supports custom channel lineups, private networks, and more.

Digital Signage & Multi-Display Environments

In retail, transportation hubs, and hotels:

• Digital signage content (e.g., promotional video) from a source can be distributed as a channel over coax.
• TVs can tune to that channel to display signage, rather than plug into HDMI.
• Simplifies display management.

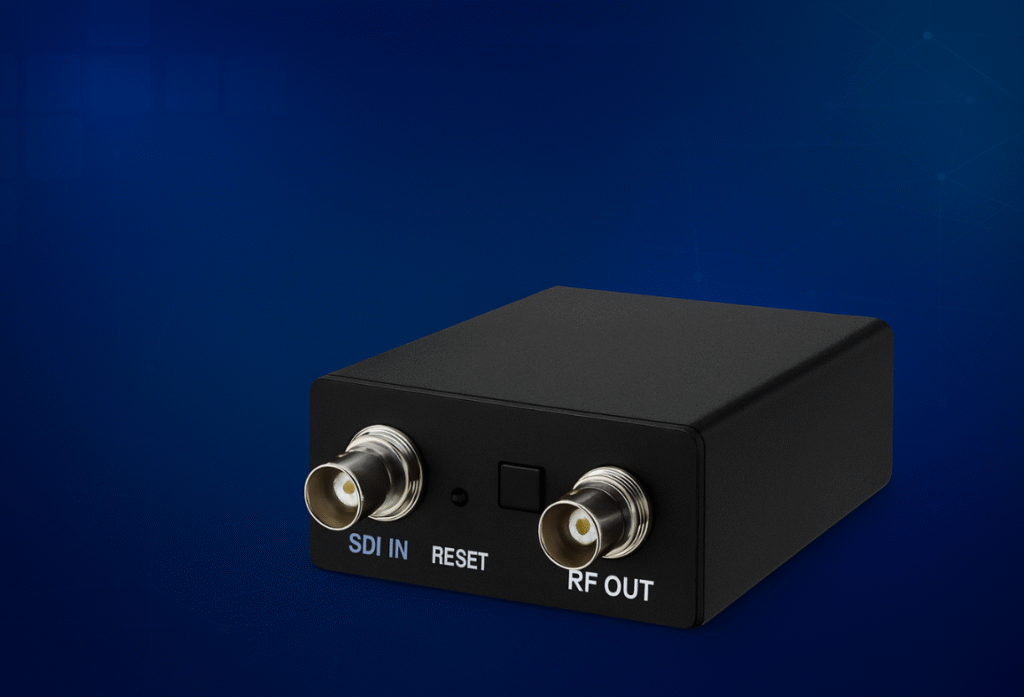

How to Choose the Right CATV SDI Modulator

Selecting the right CATV SDI modulator involves balancing your technical requirements, infrastructure constraints, and budget. Here’s a checklist to guide your decision.

Source & Output Requirements

• What is the video source? SDI (HD-SDI, 3G, 12G), HDMI, or multi-format?
• Do you need a multi-channel (multiple inputs) or a single-channel?
• What is the expected output format? QAM / ATSC / DVB-C / DVB-T?
• What is the target frequency range for RF distribution (e.g., 50-950 MHz)?

Infrastructure Assessment

• Does the site already have a coaxial distribution (CATV) network? With the required taps/splitters/amplifiers?
• Are the TVs tuner-capable and able to tune the QAM/ATSC channel you will generate?
• Will the existing network support the RF output channel without interference or attenuation?
• Is rewiring possible/desired, or do you plan to use existing cables?

Signal Quality & Distance

• How far will the signal travel? How many splits/taps? How much attenuation?
• Will you need amplification or distribution amplifiers designed for RF, not just SDI?
• Consider shielding, cable grade (RG-6, RG-59), and the network’s noise environment.
• For long runs or many splits, RF signal integrity is key.

Modulation & Standards Compatibility

• Ensure the modulator supports the modulation scheme used in your region (QAM, DVB-C, ATSC, ISDB-T).
• Does it support multiple channels (e.g., several SDI inputs modulated to different RF outputs)?
• Output frequency flexibility, output levels (dBmV), and channel mapping are essential.
• Does it support codec options (H.264, H.265) if compression is needed?

Management, Scalability & Support

• Can the CATV SDI modulator be managed remotely (web UI, SNMP)?
• Are firmware updates available? Are there remote configuration features?
• What vendor support exists (local service, spare parts, documentation)?
• Does the device allow future expansion (e.g., adding channels or inputs)?

Budget and Total Cost of Ownership

• Consider not just the modulator cost, but also installation, cable network upgrades (if necessary), distribution amplifiers, taps/splitters, etc., and other related expenses. Simple systems may need one input/channel; complex systems (stadiums) may require multi-input, low-latency, multi-output solutions.
• Balance performance (e.g., support for 4K) with cost: is 4K needed now or in the future?

Future-Proofing & Flexibility

• Is there a requirement now or in the near future for UHD/4K content? If so, ensure the modulator supports high-bandwidth inputs (12G SDI) or has an upgrade path.
• Will IP distribution become part of the system? Consider hybrid solutions (SDI to RF + IP streaming).

Common Issues & Troubleshooting

Problem	Possible Cause	Fix
No signal on TV	Incorrect channel or modulation setting	Verify frequency and QAM mode
Picture freeze	Low signal or bad cable	Check connections, use amplifier
Audio desync	Encoder delay	Adjust audio offset in modulator
Noise/interference	Poor grounding	Properly ground all equipment
Channel conflict	Duplicate frequency	Reassign unused frequency

Installation & Best Practices

Once you have chosen the CATV SDI modulator, correct installation and configuration are essential for reliable performance. Here are the best practices and common pitfalls to avoid.

Physical Installation

• Mount the modulator in a headend/rack with adequate ventilation.
• Ensure proper grounding and shielding of coaxial cables (to avoid interference).
• Use high-quality coaxial cable (e.g., RG-6) and the correct connectors (e.g., F-type, BNC) as specified by the system.
• Install distribution amplifiers, taps, and splitters rated for your frequency range and load.
• Label all channel outputs clearly for future maintenance.

Signal Chain & Distance Considerations

• Use a minimal number of splits/taps where possible – each adds insertion loss.
• If the run is long or has many endpoints, plan for RF amplifiers or pre-amplified taps.
• For the SDI input side, keep cable runs within the specified limits. For HD/3G SDI, use high-quality coaxial cable and avoid long runs beyond the specified limits without the use of repeaters.
• When mixing SDI and RF domains, ensure the coax network is free from noise and utilizes only high-quality components.

Configuration & Channel Mapping

• Assign the RF output to a channel number that aligns with your network/tracking scheme (e.g., Channel 101).
• Set the correct modulation parameters (QAM type, constellation, and symbol rate) according to your cable network standards.
• Set the correct output frequency, output level (e.g., +6 dBmV), and measure using a spectrum analyser or channel scanner.
• Configure the video encoding settings: resolution, bitrate, audio embedding, and OSD if required.
• Enable remote monitoring and alerts (if supported) to detect any signal loss or drift.

Testing & Commissioning

• Test with a reference TV set/receiver tuned to the channel to confirm correct video/audio.
• Verify image quality, audio sync, and latency (especially for live feeds).
• Walk through the network and check different endpoints (rooms, zones) for signal strength and quality.
• Use test equipment (e.g., RF meter) to measure signal levels and ensure uniform distribution.
• Document the installation, including channel numbers, frequencies, coax cable pathways, splitter/tap locations, and modulation settings.

Maintenance & Troubleshooting

• Monitor for signal loss, picture freeze, audio dropouts – these often point to coax network issues (loose connector, corrosion, amplifier drift).
• Watch for interference or ingress (e.g., from external RF sources), particularly if the coaxial infrastructure shares space with older analog cables.
• Firmware updates: Periodically check the vendor’s site for updates to fix bugs or add features.
• Keep spare parts (such as connectors, cables, and power supplies) and maintain thorough documentation for the system.

Common Pitfalls & How to Avoid Them

• Using SDI splitters/taps instead of RF taps: SDI may not distribute well with standard cable-TV splitters.
• Over-driving coaxial network: Too many splits without amplification may degrade the signal.
• Ignoring tuner compatibility: End-devices may not be able to tune specific modulation schemes (e.g., legacy TVs may fail with high-order QAM).
• Ignoring grounding/shielding: Poorly grounded or unshielded equipment can lead to hum, interference, or an unstable signal.
• Planning only for HD when 4K is needed soon can be problematic, as upgrading later may require major rewiring. Future-proofing helps.
• Lack of management/monitoring: Without remote monitoring, issues may go unnoticed until a significant outage.

Technical Standards to Know

Feature	Standard / Option	Purpose
SDI Input	HD-SDI, 3G-SDI, 12G-SDI	Supports HD to 4K sources
Encoding	MPEG-2, H.264, H.265	Efficient video compression
Modulation	QAM, DVB-C, ATSC	CATV compatibility
Output Range	50–950 MHz	CATV spectrum range
Audio Codec	AAC, Dolby Digital	Embedded or external audio
Latency	70–110 ms	Low-latency live broadcast
Management	Web GUI / SNMP	Remote control and updates

Future Trends & What to Watch

In the world of video distribution and broadcast, some trends are influencing CATV SDI modulator and similar technologies.

Growth of UHD/4K and Beyond

With 4K (and soon 8K) video becoming increasingly prevalent, modulators must support higher-bandwidth inputs (e.g., 12G SDI) and efficient compression (H.265/HEVC) to ensure that distribution over coax remains viable.

Hybrid Systems: RF + IP

Many installations now blend traditional RF distribution with IP/OTT streaming. A modulator may offer both RF-out and IP-streaming features, enabling multi-platform distribution. This hybrid ensures that both legacy TVs and modern smart displays are supported.

Low-Latency & Live Broadcast Demands

Live events (sports, concerts, stadiums) demand ultra-low latency. SDI-to-RF modulators continue to reduce delay (e.g., ~70–110 ms as cited). Designers need to monitor latency budgets when combining encoding and modulation.

Remote Management, Monitoring & Analytics

Cloud-enabled headends, SNMP monitoring, and remote firmware updates are increasingly important, especially for large distributed venues. Data analytics (which channels users watch and signals health) will become an added feature.

Use of Existing Infrastructure & Sustainability

As budgets tighten and sustainability becomes important, reusing existing coax networks (and avoiding full rewires) is a strong driver. CATV SDI modulator help extend the life of legacy cable networks.

Enhanced Modulation / Compression Techniques

Higher-order QAM (e.g., 256-QAM), improved error correction, and more efficient compression (H.265, VP9) will enable the use of more channels and higher quality over a limited RF spectrum.

Edge Computing & Smart Displays

As displays become “smarter”, the headend may push signage, telemetry, and interactive content over RF-modulated channels and integrate with IP networks, sensors, and user interaction systems.

Summary & Key Takeaways

To wrap up:

• A CATV SDI modulator is a key piece of equipment that converts SDI video signals into RF (QAM/ATSC/DVB) output suitable for coaxial CATV-style distribution.
• It enables the efficient distribution of video to multiple TVs or displays using existing coaxial cable networks.
• Key considerations when choosing one include source type (SDI standard), modulation format, network infrastructure, signal quality and latency, management features, and future-proofing.
• Best practices include proper installation (grounding, cable quality, and taps/splits), correct configuration (channel mapping, output level, and modulation parameters), and thorough testing/monitoring.
• Emerging trends include UHD/4K, hybrid RF/IP distribution, remote management, and reuse of infrastructure.
• From hotels to stadiums, educational campuses to digital signage installations, SDI modulators offer a robust solution for scalable video distribution over coax.

If you are planning a video headend system or upgrading your distribution network, understanding the role and capabilities of a CATV SDI modulator is essential. By selecting the correct device, installing and configuring it correctly, you’ll ensure high-quality video to all endpoints, maximise your existing infrastructure, and provide a scalable platform for future growth.

Related Reading on BlogVerge

• HD-SDI to RF Modulator 2025: The Ultimate Video Solution
• Why SDI to RF Converters Still Matter
• Fix Weak Signals Fast with SDI RF Modulators
• SDI 4K Modulator – Unlock True 4K Brilliance
• 8-Channel SDI Modulator – The Ultimate Power Boost
• HDTV CATV Modulator – Fix Weak TV Signals
• SDI QAM Modulator – Simple and Reliable
